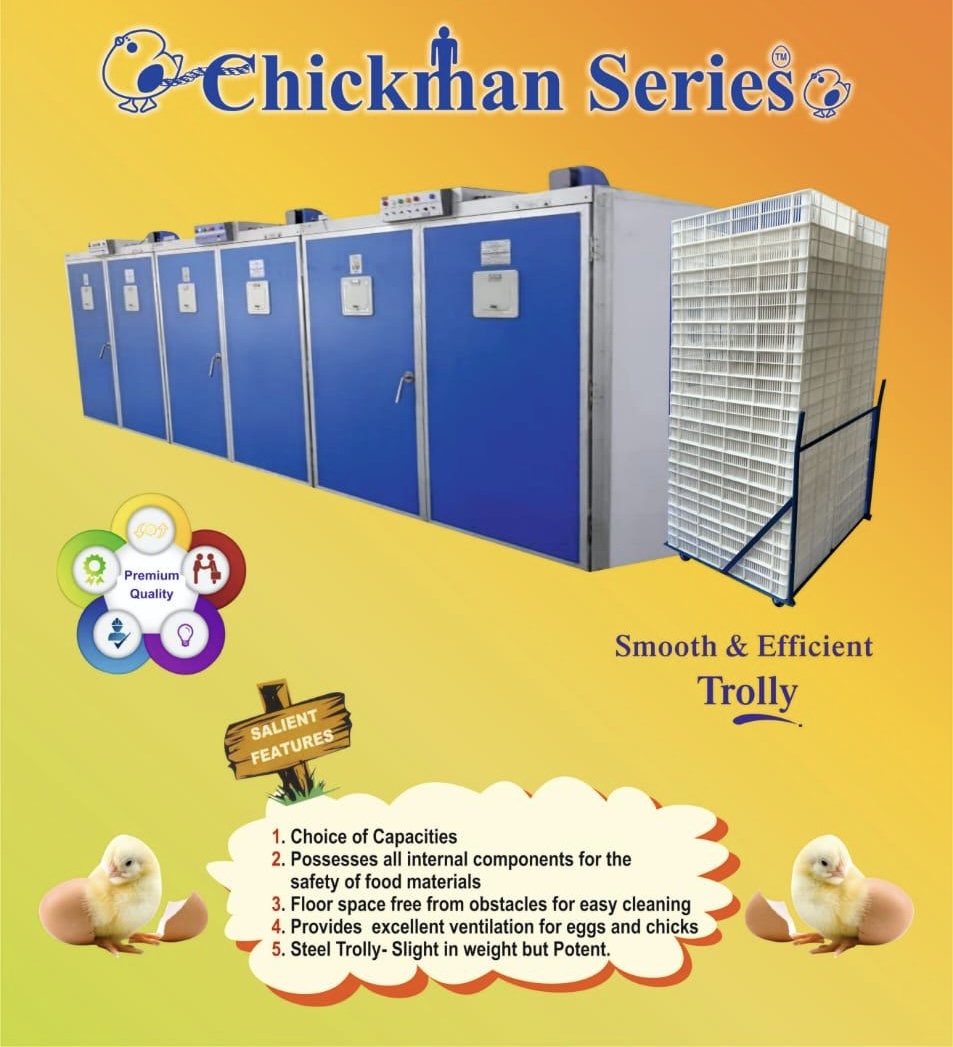

SALIENT FEATURES (HATCHER) - Choice of Capacities
- Possesses all internal components for the safety of food materials
- Floor space free from obstacles for easy cleaning
- Provides excellent ventilation for eggs and chicks
- Steel Trolly, Light, in weight but Robust.

THERMOMETERS & HYGROMETERS
Calibrated Thermometers of highest accuracy installed behind glass window for reading Temperature and Humidity in the cabinet. Easily, without opening the doors.

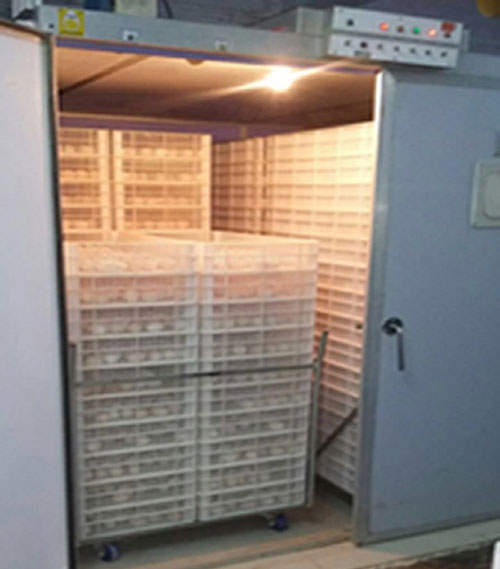

HATCHER BASKET
- Hatcher Baskets are made of high grade Plastic for durability and resistence to sanitise modren chemicals.
- Adequate Ventilation
- Easier to handle
- Ideal delivery for chicks
- Reduced labour and cost

CONTROLS - Control Panel provided, on front for quick accessability and to operate machine easily.

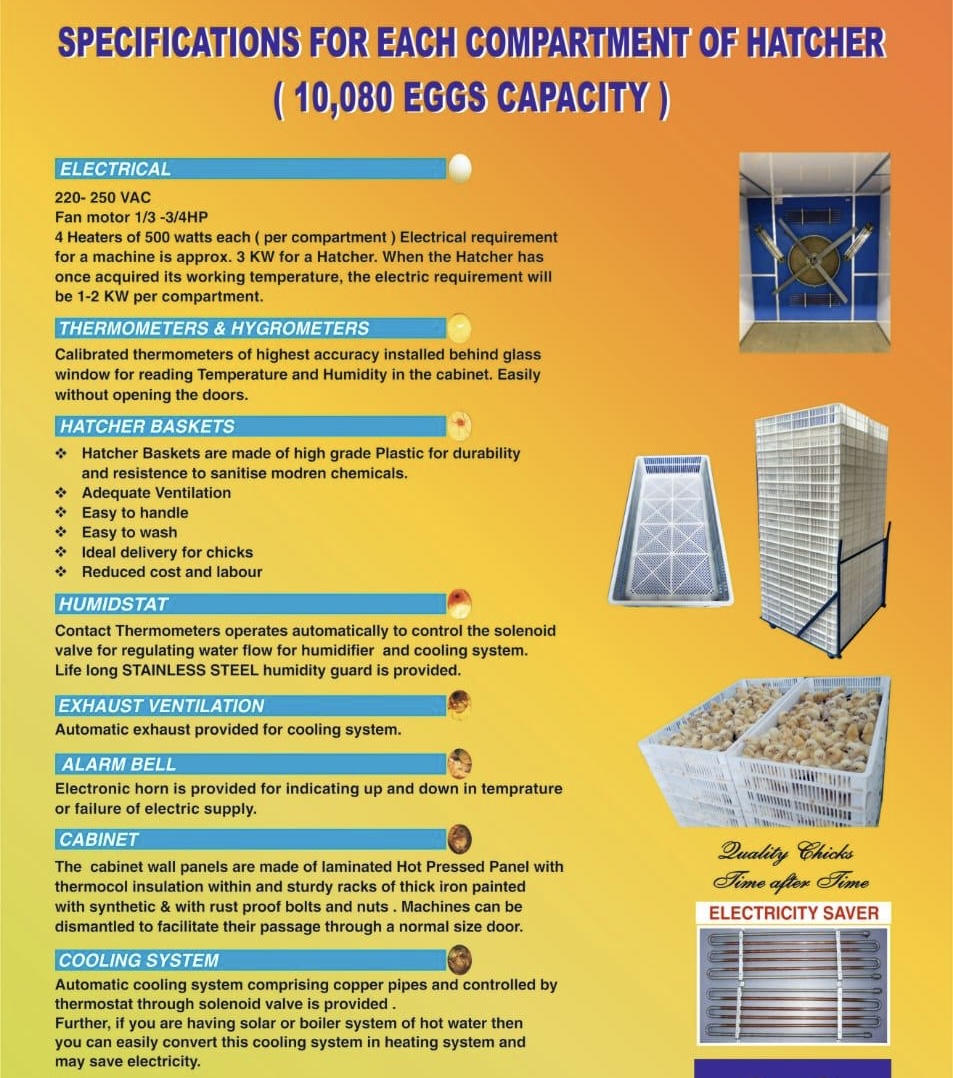

ELECTRICAL
220-250 VAC Fan Motor 1/3 -3/4 HP 4 Heaters, each of 500 watts (per compartment) Electrical requirement for a machine is approx. 3 KW for a Hatcher. When the Hatcher has once acquired its working Temperature, the electric, requirement will be 1-2 KW per compartment.

HUMIDSTAT
Contact Thermometers operates automatically to control the solenoid valve for regulating water flow for humidifier and cooling system. Life long STAINLESS STEEL humidity guard provided.

ALARM BELL
Electronic horn is provided for indicating rise or fall in Temperature or failure of electric supply.

CABINET
The cabinet wall panels are made of fibre with thermocol insulation within and Trollies of thick iron painted with synthetic & with rust proof bolts and nuts. Machines can be dismantled to facilitate their passages through a normal size door.

COOLING SYSTEM
Automatic Cooling System comprising copper pipes and controlled by thermostat through solenoid valve, is provided.

HUMIDSTAT
Contact Thermometers operates automatically to control the Solenoid Valve for regulating water flow for humidifier and cooling system. Life long STAINLESS STEEL humidity guard, is provided.

EXHAUST VENTILATION
Automatic Exhaust, provided for cooling system.

SETTING TRAYS
Specially designed Plastic trays provided for easily egg setting and for extra hatchability.

ALARM BELL
Electronic Horn is povided for indicating rise or fall in Temperature or failure of electric supply.

CABINET
The cabinet wall panels are made of fibre with thermocol insulation within and sturdy racks of thick iron painted with synthetic & with rust proof bolts and nuts. Machines can be dismantled to facilitate their passages through a normal size door.

COOLING SYSTEM Automatic Cooling System comprising copper pipes and controlled by thermostat through Solenoid Valve, is provided.

SALIENT FEATURES (SETTER)
- Cabinet Construction - Highly Durable.
- Designed with extensive use of food grade material, including many Stainless Steel for internal components.
- Independent Electric turning systems for Setter compartments.
- Floor space, free of obstacles for easy cleaning.

ELECTRICAL
220-250 VAC Fan Motor 1/3 -3/4 HP Turning motor - 1/2 HP 4 Heaters, each of 500 watts (per compartment) Electrical requirement for a machine (of one compartment) is approx. 3 KW for a Setter. When the incubator (Setter or Hatcher) has once acquired its working Temperature, the electric requirement will be 1-2 KW per compartment/machine.

THERMOMETERS & HYGROMETERS
Calibrated Thermometers of highest accuracy installed behind glass window for reading Temperature and humidity in the cabinet easily, without opening the doors.

AUTOMATIC TURNING SYTSTEM
Robust and compact reduction gear box driven by 1/2 HP Motor. The electric timer operates the turning system automatically, every hour. The system is also provided with electrically operated rotation counter.

CONTROLS
Control Panel provided on front for quick accessability and to operate machine easily.

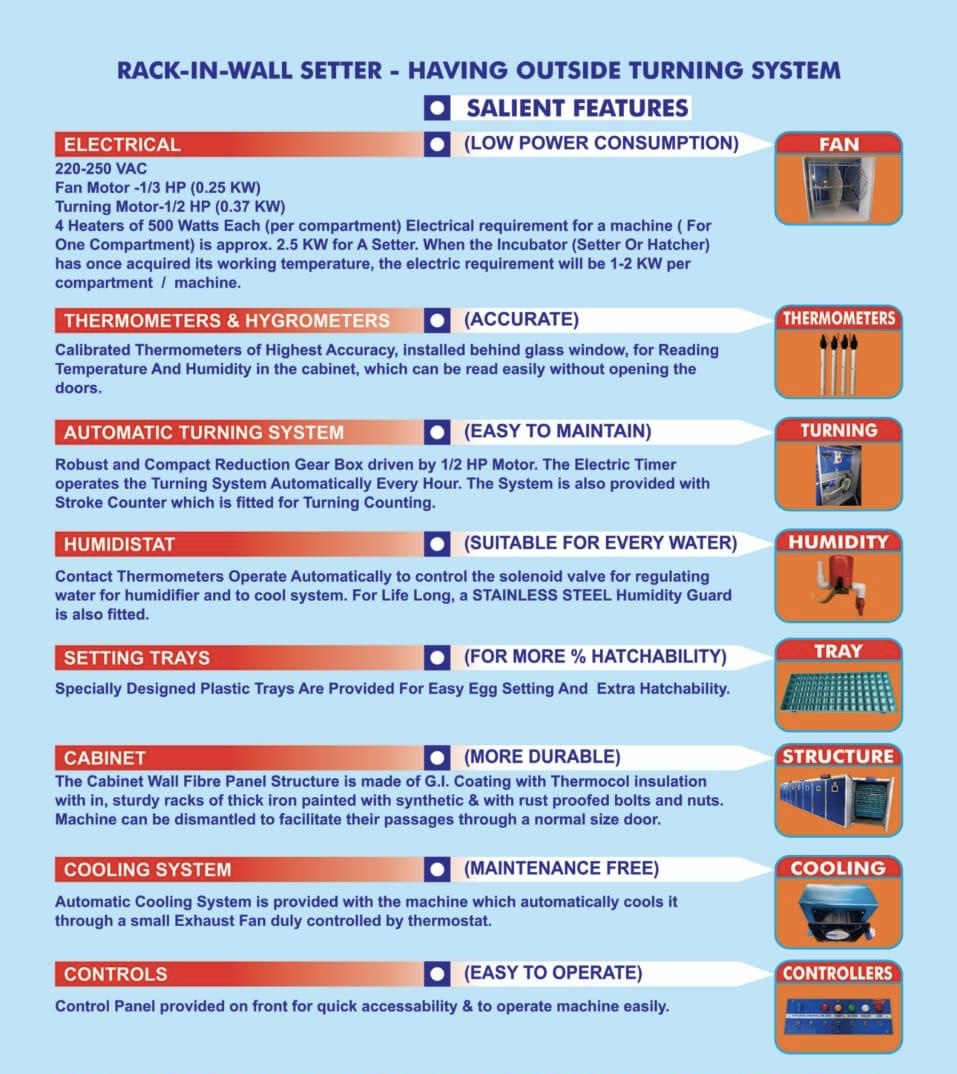

SALIENT FEATURES
- Low Power Consumption
- Accurate
- Easy to Maintain
- Suitable for every water
- For more % Hatchability
- More Durable
- Maintenance Free
- Easy to Operate

ELECTRICAL
220-250 vac Fan Motor-1/3 HP (0.25 KW) Turning Motor-1/2 HP (0.37 KW) 4 Heaters, each of 500 Watts (per compartment) Electrical requirement for a machine (For One Compartment) is approx. 2.5 KW for A Setter. When the Incubator (Setter or Hatcher has once acquired its working temperature, the electric requirement will be 1-2 KW per compartment / machine
Calibrated Thermometers of highest accuracy installed behind glass window for reading Temperature and humidity in the cabinet easily, without opening the doors.

THERMOMETER & HYGROMETERS
Calibrated Thermometers of Highest Accuracy, installed behind glass window, for Reading Temperature and Humidity in the cabinet, which can be read easily without opening the doors.

CONTROLS
Control Panel is provided on front for quick accessability and to operate machine easily.

HUMIDISTAT
Contact Thermometers Operate Automatically to control the Solenoid Valve for regulating water or humidifier and to cool system. For Life Long, a STAINLESS STEEL Humidity Guard is also fitted.

SETTING TRAYS
Specially Designed Plastic Trays Are Provided For Easy Egg Setting and Extra Hatchability.

CABINET
The Cabinet walls are made by Laminaed Panel, all Panels are Water Proof, Thermocol insulation with in, sturdy racks of thick iron painted with synthetic & with rust proofed bolts and nuts. Machine can be dismantled to facilitate their passages through a normal size door.

COOLING SYSTEM
Automatic Cooling System is provided with the machine which automatically cools it through a small Exhaust Fan duly controlled by thermostat.

AUTOMATIC TURNING SYSTEM
Robust and Compact Reduction Gear Box driven by 1/2 HP Motor. The Electric Timer operates the Turning System Automatically Every Hour. The System is also povided with Stroke Counter which is fitted for Turning Counting.
